Tere,

Mul on TP-Link Archer C5 v1.2 millel jookseb OpenWRT 15.05.1 ja sooviks selle peal tööle saada Telia TVd IGMP proxyga. Olen proovinud juba teha seda kahe juhise järgi mis leidnud olen ( http://elionihuvilised.blogspot.com.ee/2013/07/vahetame-valja-elioni-ruuteri.html ja https://wiki.openwrt.org/doc/howto/udp_multicast ), kuid tööle ei saa. Digiboks küll käivitub, aga telekat näha pole, ainult musta pilti. Menüü ka laadib ära. Praegu mul confid sellised:

Spoiler

/etc/config/network (VLAN 4 on tagged LAN pordile 4, niimoodi ta töötab. Kui panna ta br-lani, siis IPTV ei tööta).
[spoiler]

config interface 'loopback'    option ifname 'lo'    option proto 'static'    option ipaddr '127.0.0.1'    option netmask '255.0.0.0' config globals 'globals'    option ula_prefix 'fda5:a9a7:3657::/48' config interface 'lan'    option ifname 'eth1'    option force_link '1'    option igmp_snooping '1'    option type 'bridge'    option proto 'static'    option netmask '255.255.255.0'    option ip6assign '60'    option ipaddr '192.168.1.1' config interface 'wan'    option proto 'dhcp'    option _orig_ifname 'eth0'    option _orig_bridge 'false'    option ifname 'eth0' config interface 'wan6'    option ifname 'eth0'    option proto 'dhcpv6'    option reqaddress 'force'    option reqprefix 'auto' config switch    option name 'switch0'    option reset '1'    option enable_vlan '1'    option mirror_source_port '0'    option mirror_monitor_port '0' config switch_vlan    option device 'switch0'    option vlan '1'    option vid '1'    option ports '0 2 3 4' config switch_vlan    option device 'switch0'    option vlan '2'    option vid '2'    option ports '1 6' config switch_vlan    option device 'switch0'    option vlan '3'    option vid '4'    option ports '1t 5 6t' config route    option interface 'lan'    option target '192.168.0.0/24'    option netmask '255.255.255.0'    option gateway '192.168.1.3' config interface 'IPTV'    option proto 'dhcp'    option defaultroute '0'    option reqopts 'staticroutes msstaticroutes'    option ifname 'eth0.4'

/etc/config/firewall (koos mõne portforwardiga)

Spoiler

config defaults    option syn_flood '1'    option input 'ACCEPT'    option output 'ACCEPT'    option forward 'REJECT' config zone    option name 'lan'    option input 'ACCEPT'    option output 'ACCEPT'    option forward 'ACCEPT'    option network 'lan' config zone    option name 'wan'    option input 'REJECT'    option output 'ACCEPT'    option forward 'REJECT'    option masq '1'    option mtu_fix '1'    option network 'wan wan6 IPTV' config forwarding    option src 'lan'    option dest 'wan' config rule    option name 'Allow-DHCP-Renew'    option src 'wan'    option proto 'udp'    option dest_port '68'    option target 'ACCEPT'    option family 'ipv4' config rule    option name 'Allow-Ping'    option src 'wan'    option proto 'icmp'    option icmp_type 'echo-request'    option family 'ipv4'    option target 'ACCEPT' config rule    option name 'Allow-IGMP'    option src 'wan'    option proto 'igmp'    option family 'ipv4'    option target 'ACCEPT' config rule    option name 'Allow-DHCPv6'    option src 'wan'    option proto 'udp'    option src_ip 'fe80::/10'    option src_port '547'    option dest_ip 'fe80::/10'    option dest_port '546'    option family 'ipv6'    option target 'ACCEPT' config rule    option name 'Allow-MLD'    option src 'wan'    option proto 'icmp'    option src_ip 'fe80::/10'    list icmp_type '130/0'    list icmp_type '131/0'    list icmp_type '132/0'    list icmp_type '143/0'    option family 'ipv6'    option target 'ACCEPT' config rule    option name 'Allow-ICMPv6-Input'    option src 'wan'    option proto 'icmp'    list icmp_type 'echo-request'    list icmp_type 'echo-reply'    list icmp_type 'destination-unreachable'    list icmp_type 'packet-too-big'    list icmp_type 'time-exceeded'    list icmp_type 'bad-header'    list icmp_type 'unknown-header-type'    list icmp_type 'router-solicitation'    list icmp_type 'neighbour-solicitation'    list icmp_type 'router-advertisement'    list icmp_type 'neighbour-advertisement'    option limit '1000/sec'    option family 'ipv6'    option target 'ACCEPT' config rule    option name 'Allow-ICMPv6-Forward'    option src 'wan'    option dest '*'    option proto 'icmp'    list icmp_type 'echo-request'    list icmp_type 'echo-reply'    list icmp_type 'destination-unreachable'    list icmp_type 'packet-too-big'    list icmp_type 'time-exceeded'    list icmp_type 'bad-header'    list icmp_type 'unknown-header-type'    option limit '1000/sec'    option family 'ipv6'    option target 'ACCEPT' config include    option path '/etc/firewall.user' config rule    option src 'wan'    option dest 'lan'    option proto 'esp'    option target 'ACCEPT' config rule    option src 'wan'    option dest 'lan'    option dest_port '500'    option proto 'udp'    option target 'ACCEPT' config redirect    option target 'DNAT'    option src 'wan'    option dest 'lan'    option proto 'tcp'    option src_dport '80'    option dest_port '80'    option name 'HTTP'    option dest_ip '192.168.1.2' config redirect    option target 'DNAT'    option src 'wan'    option dest 'lan'    option proto 'tcp'    option src_dport '443'    option dest_port '443'    option name 'HTTPS'    option dest_ip '192.168.1.2' config redirect    option target 'DNAT'    option src 'wan'    option dest 'lan'    option proto 'tcp'    option src_dport '3389'    option dest_port '3389'    option name 'RDP'    option dest_ip '192.168.1.2' config redirect    option target 'DNAT'    option src 'wan'    option dest 'lan'    option proto 'tcp udp'    option src_dport '27015'    option dest_ip '192.168.1.38'    option dest_port '27015'    option name 'GMod' config rule    option src 'wan'    option proto 'udp'    option dest 'lan'    option dest_ip '224.0.0.0/4'    option target 'ACCEPT'    option family 'ipv4'

/etc/config/igmpproxy

Spoiler

config igmpproxy    option quickleave 1 config phyint    option network eth0.4    option direction upstream    list altnet 10.0.0.0/8 config phyint    option network lan    option direction downstream

Oskab keegi aidata?

[ThedEviL]

miks sa igmp proxyt tahad mitte switchiga vlan 4 konkreetsesse porti untaggida?

[SndyBrdge]

[inah]

kommentaare lugesid või mul aitas:

[SndyBrdge]

[ThedEviL]

pane vlan4 suunda dhcp client

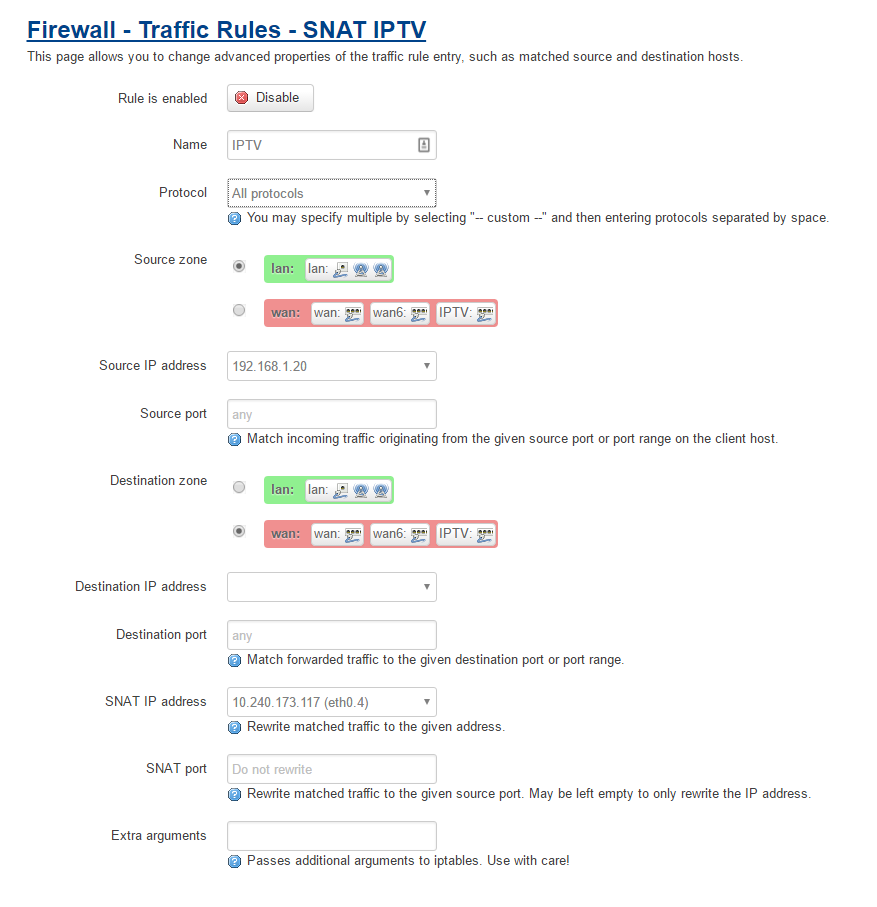

tee selle pihta maskeraad source nat, kaugemale kui su interneti maskeraad on. Nt distance 5

Üsna kindel, et selle dhcp kliendile pead sa mõnda digiboxi Mac'i spoofima.

[SndyBrdge]

[aht0]

[SndyBrdge]

[KillFrenzy]

SndyBrdge, LG tahab inteno ruuterit, kuidas see inteno olemasolu kontroll käib, pole vist hetkel veel teada.

Samsungiga on pidu läbi ja kõik telia pakutavad LG telerid on eelmise aasta mudelid, uutel tugi puudub.

[SndyBrdge]

[Etz]

SndyBrdge, et pilt ka üle NAT`i ette tuleks ongi sul IGMP proxyt vaja...

[SndyBrdge]
