[ristok]

[anubis]

[KoldK]

Kas 490 ja 490x on selle aasta lõpus oodata või järgmise algul? Kuskil midagi ametlikku öeldud?

[rene p]

[londiste]

anubis, ma eeldaks, et see 191w on spike. võib mõõtmishetkega ühte sattuda küll. keskmine 130-160w vastab eeldustele.

[anubis]

Mul oli Reference RX480 maksimaalne tarve ~120W, keskmine kõikus 100-110W vahel. Praegusel RX470 on 90-100W vahel ja piigid 110W peale.

Tootjakaartidel on voolutarvet ikka jõhkralt tõstetud.

[londiste]

anubis, kas gpu-z näitab gpu või kaardi tarvet?
vajab üle kontrollimist aga iirc raporteeris see gpu tarvet, muu kaart tuleb otsa.

[anubis]

GPU tarve ikka, mälu ja vooluahela kaod lisaks kogutarbe jaoks.

Spoiler

anubis kirjutas:

Mul pole sellist asja juhtunud. Hetkel RX470, driverid küll veidi vanemad, kuid boostib ilusti. https://www.techpowerup.com/gpuz/details/wnpa4

Load pildil on Collatz Conjecture ühe tööühiku läbitöötlemisel. http://boinc.thesonntags.com/collatz/

[olafsand]

anubis, 208W rea leidsin ka just. Panen txt faili üles kui keegi tahab lihtsalt vaadata. GTA5 lühike mängusessioon.

https://www.upload.ee/files/6307968/GPU-Z_Sensor_Log.txt.html

[Etz]

[anubis]

Ma teen kohe oma kaardiga GTA5 benchi, 1080p kõik viled põhjas, saab võrrelda.

[olafsand]

anubis, mul kõik viled põhjas polnud, sest siis langeb fps alla 60ne, aga ma seda oma silmadega ei kannata

[londiste]

[anubis]

Ma lihtne eesti mees, kõrge valulävega

[olafsand]

londiste, see link

anubis, ma ka lihtne, aga mul ajab see alla 60 fps asi pea valutama

Huvitav kuum kaart on ka jah. Idles 47-50c. Vent muidugi seisab ka ja hea vaikne. Vb aitaks ka see, kui korpuse eest sisse puhuma miskit vaikset panna, praegu veab tagant üks 120mm vent sooja välja + toide võtab seest sooja ja viib tagant välja. Kast eest kinni pole, aga ventika "auk" on lihtsalt tühi.

[anubis]

Niih, selline asi siis.

Spoiler

Frames Per Second (Higher is better) Min, Max, Avg Pass 0, 15.966149, 95.690224, 64.142563 Pass 1, 39.814625, 90.785416, 57.396465 Pass 2, 41.760201, 277.360809, 62.129910 Pass 3, 48.459164, 158.392578, 72.325821 Pass 4, 29.931690, 265.304657, 65.736595 Time in milliseconds(ms). (Lower is better). Min, Max, Avg Pass 0, 10.450388, 62.632511, 15.590272 Pass 1, 11.014985, 25.116400, 17.422676 Pass 2, 3.605412, 23.946245, 16.095308 Pass 3, 6.313427, 20.635931, 13.826321 Pass 4, 3.769252, 33.409405, 15.212227 Frames under 16ms (for 60fps): Pass 0: 409/593 frames (68.97%) Pass 1: 47/537 frames (8.75%) Pass 2: 304/577 frames (52.69%) Pass 3: 565/663 frames (85.22%) Pass 4: 5027/7483 frames (67.18%) Frames under 33ms (for 30fps): Pass 0: 591/593 frames (99.66%) Pass 1: 537/537 frames (100.00%) Pass 2: 577/577 frames (100.00%) Pass 3: 663/663 frames (100.00%) Pass 4: 7482/7483 frames (99.99%) Percentiles in ms for pass 0 50%,   15.00 75%,   16.00 80%,   17.00 85%,   18.00 90%,   19.00 91%,   19.00 92%,   19.00 93%,   19.00 94%,   19.00 95%,   19.00 96%,   19.00 97%,   20.00 98%,   20.00 99%,   21.00 Percentiles in ms for pass 1 50%,   17.00 75%,   18.00 80%,   18.00 85%,   18.00 90%,   19.00 91%,   19.00 92%,   19.00 93%,   19.00 94%,   20.00 95%,   20.00 96%,   20.00 97%,   21.00 98%,   21.00 99%,   22.00 Percentiles in ms for pass 2 50%,   15.00 75%,   17.00 80%,   18.00 85%,   18.00 90%,   19.00 91%,   19.00 92%,   19.00 93%,   19.00 94%,   20.00 95%,   20.00 96%,   20.00 97%,   21.00 98%,   21.00 99%,   22.00 Percentiles in ms for pass 3 50%,   14.00 75%,   15.00 80%,   15.00 85%,   15.00 90%,   16.00 91%,   16.00 92%,   17.00 93%,   17.00 94%,   17.00 95%,   17.00 96%,   18.00 97%,   19.00 98%,   19.00 99%,   20.00 Percentiles in ms for pass 4 50%,   15.00 75%,   16.00 80%,   17.00 85%,   17.00 90%,   18.00 91%,   19.00 92%,   19.00 93%,   19.00 94%,   19.00 95%,   20.00 96%,   20.00 97%,   21.00 98%,   21.00 99%,   23.00 === SYSTEM === Windows 10 Pro 64-bit (6.2, Build 9200) DX Feature Level: 11.0 Genuine Intel(R) CPU 0000 @ 2.20GHz (28 CPUs), ~2.2GHz 32768MB RAM Radeon (TM) RX 470 Graphics, 4241MB, Driver Version 21.19.151.3 Graphics Card Vendor Id 0x1002 with Device ID 0x67df === SETTINGS === Display: 1920x1080 (FullScreen) @ 59Hz VSync OFF Tessellation: 3 LodScale: 1.000000 PedLodBias: 0.200000 VehicleLodBias: 0.000000 ShadowQuality: 3 ReflectionQuality: 3 ReflectionMSAA: 2 SSAO: 2 AnisotropicFiltering: 16 MSAA: 2 MSAAFragments: 0 MSAAQuality: 0 SamplingMode: 0 TextureQuality: 2 ParticleQuality: 2 WaterQuality: 2 GrassQuality: 3 ShaderQuality: 2 Shadow_SoftShadows: 4 UltraShadows_Enabled: false Shadow_ParticleShadows: true Shadow_Distance: 1.000000 Shadow_LongShadows: false Shadow_SplitZStart: 0.930000 Shadow_SplitZEnd: 0.890000 Shadow_aircraftExpWeight: 0.990000 Shadow_DisableScreenSizeCheck: false Reflection_MipBlur: true FXAA_Enabled: true TXAA_Enabled: false Lighting_FogVolumes: true Shader_SSA: true DX_Version: 2 CityDensity: 1.000000 PedVarietyMultiplier: 1.000000 VehicleVarietyMultiplier: 1.000000 PostFX: 3 DoF: true HdStreamingInFlight: false MaxLodScale: 0.000000 MotionBlurStrength: 0.500000

https://www.upload.ee/files/6308169/gta5.txt.html

edit: eksisin. Aga lihtsalt põhjusel, varem testisin 1.050v@1325mhz, praegu jookseb 1.075v@1325mhz. Peakid on kohe kõrgemad.

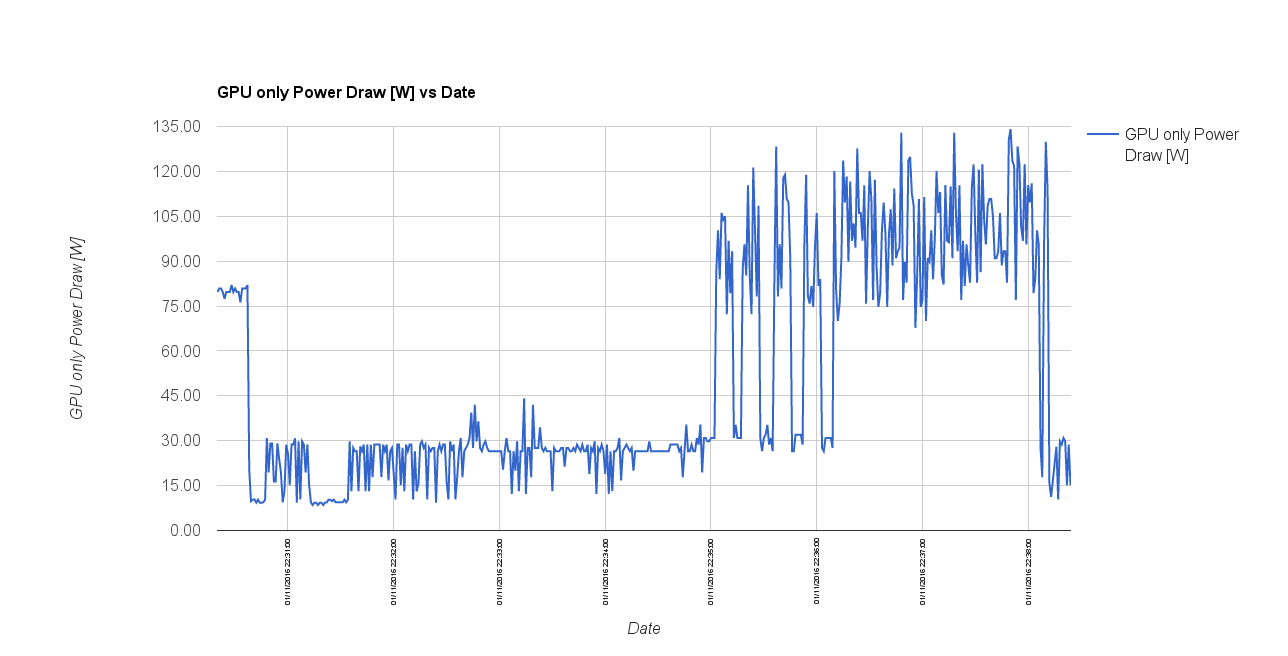

Spoiler

AVG = 88.5W
MAX =134.1W
MED = 94.5W

[olafsand]

anubis, sa tegid seda mängusisest benchmarki eks? Ma sätin korra kõik täpselt samasuguseks 1:1le nagu sul ja teen ka testi log failiga.

[anubis]

Jep, mängusisene test.

Mängumootori täpsed meetrikud leiad pärast C:\Users\[kasutaja]\Documents\Rockstar Games\GTA V\Benchmarks

[olafsand]

Spoiler

Frames Per Second (Higher is better) Min, Max, Avg
Pass 0, 37.744812, 136.266174, 68.220741
Pass 1, 38.807064, 107.218597, 61.683670
Pass 2, 42.565357, 144.259918, 66.148087
Pass 3, 50.401596, 136.332764, 71.988892
Pass 4, 35.144180, 148.348114, 69.903458

Time in milliseconds(ms). (Lower is better). Min, Max, Avg
Pass 0, 7.338578, 26.493708, 14.658298
Pass 1, 9.326740, 25.768505, 16.211746
Pass 2, 6.931932, 23.493284, 15.117596
Pass 3, 7.334994, 19.840641, 13.891032
Pass 4, 6.740901, 28.454214, 14.305444

Frames under 16ms (for 60fps):
Pass 0: 468/635 frames (73.70%)
Pass 1: 225/577 frames (38.99%)
Pass 2: 371/614 frames (60.42%)
Pass 3: 615/675 frames (91.11%)
Pass 4: 6327/7952 frames (79.56%)

Frames under 33ms (for 30fps):
Pass 0: 635/635 frames (100.00%)
Pass 1: 577/577 frames (100.00%)
Pass 2: 614/614 frames (100.00%)
Pass 3: 675/675 frames (100.00%)
Pass 4: 7952/7952 frames (100.00%)

Percentiles in ms for pass 0
50%, 14.00
75%, 16.00
80%, 17.00
85%, 17.00
90%, 18.00
91%, 18.00
92%, 18.00
93%, 18.00
94%, 18.00
95%, 18.00
96%, 18.00
97%, 18.00
98%, 19.00
99%, 19.00

Percentiles in ms for pass 1
50%, 16.00
75%, 17.00
80%, 17.00
85%, 17.00
90%, 18.00
91%, 18.00
92%, 18.00
93%, 18.00
94%, 18.00
95%, 18.00
96%, 19.00
97%, 19.00
98%, 20.00
99%, 22.00

Percentiles in ms for pass 2
50%, 15.00
75%, 16.00
80%, 16.00
85%, 17.00
90%, 17.00
91%, 17.00
92%, 17.00
93%, 17.00
94%, 17.00
95%, 18.00
96%, 18.00
97%, 18.00
98%, 20.00
99%, 21.00

Percentiles in ms for pass 3
50%, 13.00
75%, 14.00
80%, 14.00
85%, 15.00
90%, 15.00
91%, 15.00
92%, 16.00
93%, 16.00
94%, 16.00
95%, 16.00
96%, 17.00
97%, 17.00
98%, 17.00
99%, 18.00

Percentiles in ms for pass 4
50%, 14.00
75%, 15.00
80%, 16.00
85%, 16.00
90%, 17.00
91%, 17.00
92%, 17.00
93%, 18.00
94%, 18.00
95%, 18.00
96%, 18.00
97%, 19.00
98%, 20.00
99%, 22.00

=== SYSTEM ===
Windows 10 Pro Insider Preview 64-bit (6.2, Build 9200)
DX Feature Level: 11.0
Intel(R) Core(TM) i7-4790K CPU @ 4.00GHz (8 CPUs), ~4.0GHz
16384MB RAM
Radeon (TM) RX 480 Graphics, 8536MB, Driver Version 21.19.155.257
Graphics Card Vendor Id 0x1002 with Device ID 0x67df

=== SETTINGS ===
Display: 1920x1080 (FullScreen) @ 59Hz VSync OFF
Tessellation: 3
LodScale: 1.000000
PedLodBias: 0.200000
VehicleLodBias: 0.000000
ShadowQuality: 3
ReflectionQuality: 3
ReflectionMSAA: 2
SSAO: 2
AnisotropicFiltering: 16
MSAA: 2
MSAAFragments: 0
MSAAQuality: 0
SamplingMode: 0
TextureQuality: 2
ParticleQuality: 2
WaterQuality: 2
GrassQuality: 3
ShaderQuality: 2
Shadow_SoftShadows: 4
UltraShadows_Enabled: false
Shadow_ParticleShadows: true
Shadow_Distance: 1.000000
Shadow_LongShadows: false
Shadow_SplitZStart: 0.930000
Shadow_SplitZEnd: 0.890000
Shadow_aircraftExpWeight: 0.990000
Shadow_DisableScreenSizeCheck: false
Reflection_MipBlur: true
FXAA_Enabled: true
TXAA_Enabled: false
Lighting_FogVolumes: true
Shader_SSA: true
DX_Version: 2
CityDensity: 1.000000
PedVarietyMultiplier: 1.000000
VehicleVarietyMultiplier: 1.000000
PostFX: 3
DoF: true
HdStreamingInFlight: false
MaxLodScale: 0.000000
MotionBlurStrength: 0.500000

Panin kõik sätted täpselt nagu sinul ja tegin ka siis testi. Sa oskad paremini võrrelda kindlasti

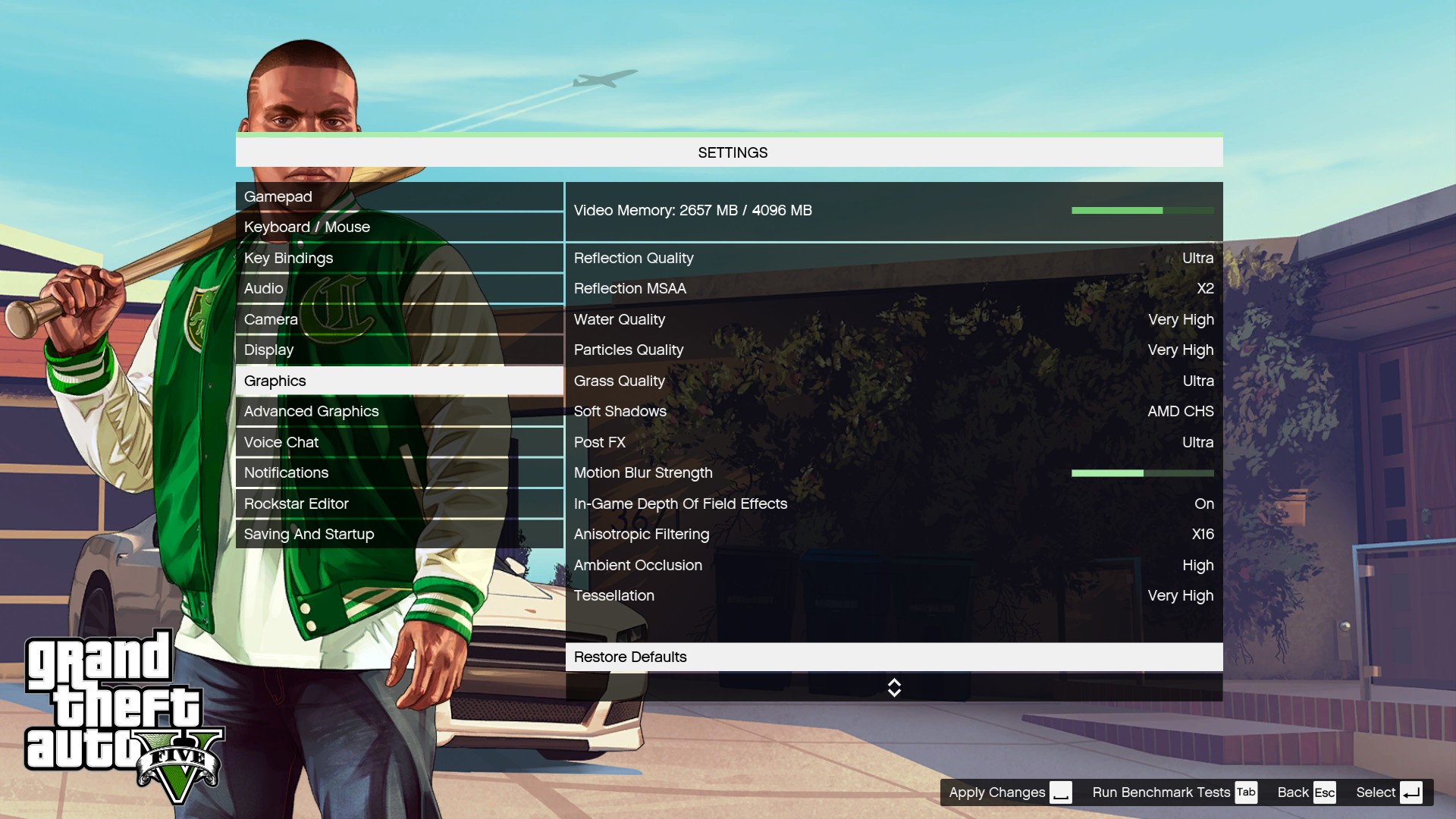

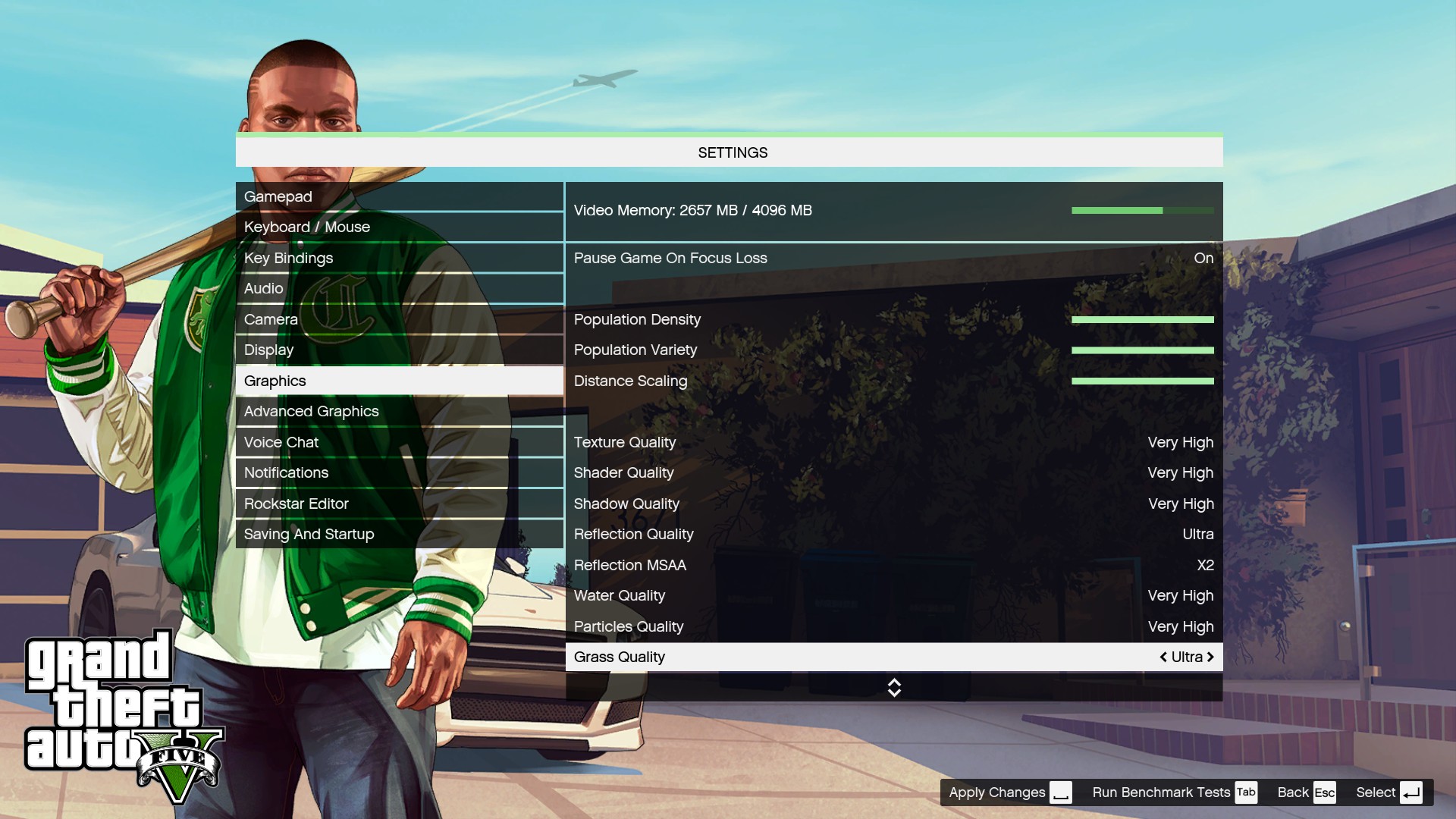

Kuvatõmmiseid sätetest ei teinud, aga kontrollisin 2x üle enne kui benchi käima lasin, et oleks täpselt identne.
https://www.upload.ee/files/6308281/GPU-Z_Sensor_Log.txt.html

[londiste]

[Tomorrow]

[Etz]

[olafsand]

londiste, suured tänud!!! Viitsid palun veel ühe graafiku teha mulle? Heaven benchmark. Huvitav on see, et sundisin ventika 100% peale käsitsi ja siis temp väga üle 65c ei lähe. Kui automaatselt lasta sättida, siis kuni 80c tõuseb. Aga sunnitud 100% vent lärmab ikkagi päris kõvasti.

https://www.upload.ee/files/6309443/heaven_benchmark_4.txt.html

[londiste]

olafsand, installi omale mingi openoffice calc vms, graafikute tegemine pole ju keeruline

Spoiler

.

endale jooksvalt parema ülevaate jaoks on mõni ise graafikuid joonistav monitooringsoft kasulik.

[olafsand]

londiste, aitäh veelkord! Uurin maad
